OFSG611
1GE port GPON ONU for FTTH solution
Description:
OFSG611 is a mini GPON ONU terminal device , which applies to pure broadband access.GPON
ONU adopts mini-type compact structure design with high-integration
and can provide 1 GE(RJ45)interfaces. Supports the technology of layer 2 Ethernet switch and GPON ONU is easy to maintenance and manage.It can be applied to FTTH/FTTP
access application for resident and business users.and GPON ONU is fully compliant to technical regulations such as IEEE802.3ah and
technical requirement of GPON Equipment (V3.1).
Technical Specifications
Technical items | Description |
Optical property |
Upstream PON interface | 1 GPON interface, SC single-mode/single-fibre, uplink 1.25Gbps, downlink 2.5Gbps |
Wavelength | Tx 1310nm, Rx 1490nm |
Optical output power | -1~+4dBm |
Receiving sensitivity | <-26dBm |
Farthest distance | 20km between OLT and ONU |
Optical interface | SC/UPC connector |
Downstream LAN interface | 1*10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors |
Layer 2/3 switch | Support IEEE802.1Q VLAN |
Support speed rate inhibition of broadcast packet at ONU |
IEEE 802.3X flow control |
Support 16 multicast addresses at each LAN port |
Security strategy | Support AES-128,data encryption for both upstream and downstream Support dynamic update of key |
Management maintenance | Centralized OLT management based on OAM |
WEB,CLI |
Upgrade software remotely |
Hardware information |
Indicators | 4 indicators, for status of power supply, PON port and 1 Giga-Ethernet port. |
DC power supply | +12V, external AC-DC power adaptor |
Chipset | zte chipset |
Power switch | 1 |
Power consumption | ≤2.5W |
Operating condition | Operating temp: -5~+55℃
Operating humidity:10~90%(non-condensed) |
Storing condition | Storing temp: -30~+60℃
Storing humidity:10~90%(non-condensed) |
Dimension | 83mm*83mm*25mm(length*width*height) |
Net weight | 0.24Kg |
Feature:
l Plug and play, features auto-detecting, auto-configuration, and
auto firmware upgrade, etc.
l Support triple churning encryption request
l Support DBA reporting mechanism request
l Support OAM remote configuration maintenance function
l Support the remote upgrade and download
l Support status detection and fault report
l Support to configure the work mode at the user port.
l Support data encryption and decryption
l Support 802.1Q VLAN
l Support rich QinQ VLAN functions and IGMP Snooping
l Support traffic rule to modify the related priority.
l Support LED indication
l Support to restore the factory settings
l Support the remote reset and reboot
l Support dying gasp outage alarm
l Fully compatibility with OLT based=on=Broadcom/PMC/Cortina chipset.

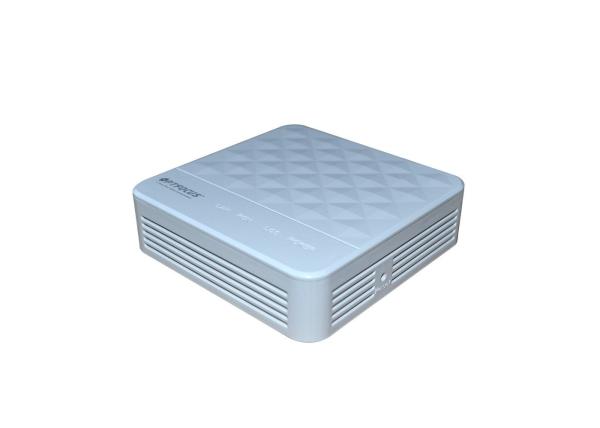

Physical Pic Reference :
Application
FAQ
1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.
2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date
of shipment.
3. How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low
cutoff 10V.
4. Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server
for details.
5. Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported.
The network management type we produce can support this function.
