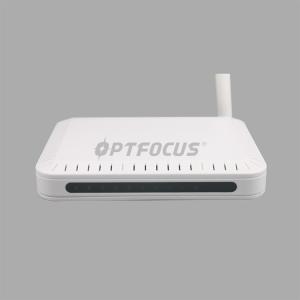

Single Mode 1GE Catv Wifi GPON EPON ONU 12V DC Power Supply With Fiberhome Huawei Vsol

Product Categories

Shenzhen Optfocus Technology Co., Ltd.

Contact Now

Name: Single Mode 1GE Catv Wifi GPON EPON ONU 12V DC Power Supply With Fiberhome Huawei Vsol
Brand: OPTFOCUS
Price: 28 USD

Ask Lasest Price
Brand Name :	OPTFOCUS
Model Number :	X622-CW
Price :	28-32$
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000PCS
Delivery Time :	5-7 work days

Add to Cart

OFSX622-CW

1GE+1FE Ethernet ports with Wifi WDM CATV XPON ONU for FTTH solution

Product Description

Specification

Attributes	X622-CW
Power Supply	12V,1A
Full Loaded Power Consumption	<=7W
Outline Dimension	16711932mm
Weight	<=0.6kg
Environmental requirements	Storage temperature:-30ºC~70ºC Working humidity:10%~85%
Ethernet Standard	IEEE802.3ah/802.3-2005

WIFI	Antenna	2T2R Mode, 5DBI Gain ,Frequency:2.4G ,external antenna
	EIRP	Max 25dBm
CATV	Tech feactures	Description
	Optical wavelength	1540-1560nm
	Optical input range	0-15DBm
	Optical return loss	≥45DB
	Bandwidth	45-1000MHz
	Flatness	+/-1DB
	RF output level	≥72dBuv
	AGC control range	0-14DBm
	RF output return loss	≥14DB

Features
